Solar power system

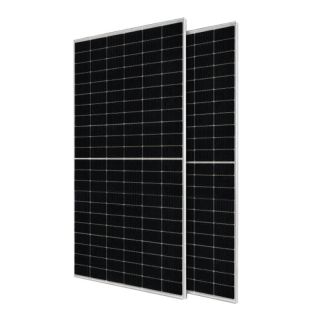

480-505W Mbb half cell 132cells solar panel for rooftop power system

MBB 505W
Power: 480-505W
Solar Cell: Mono half cut cells
Power Tolerance: 0~5w
Weight: 26.3Kg±3%
Dimensions: 2094±2mmx1134±2mmx35±1mm
Warranty: 10years
Delivery Time: 10-15 days
Shipping Port: Shanghai/Ningbo sea port
Payment Term: T/T or L/C

Description

Solar Panel Data Sheet

Description of Specification

Configuration

Units

Model

NES132-7-505M

General Data

Maximum Power

Pm(W)

Watts

505W

Watt Tolerance

-

Watts

0-5

Storage & Operating Temperature

-

Deg .C

-45~85

Voltage & Ampereage

Maximum System Voltage

-

Volts

1000V/1500V DC (IEC)

Maximum Operating Voltage

Vmp

Volts

38.53

Maximum Operating Current

Imp

Amps

13.11

Open Circuit Voltage

Voc

Volts

45.72

Short Circuit Current

Isc

Amps

14.00

Solar Cell

Cell Type

-

-

Monocrystalline cells

Number of Cells

In Series

-

132(11*6*2)

Warranty

Manufacturing

-

Years

10

Dimensions & Weight

Dimensions: Length×Width×Height

-

mm

2094±2mmx1134±2mmx35±1

Weight

-

kg

26.3Kg±3%


Product Feature

9BB 340W-101.jpg
